EL-MOTE Series
Our EL-MOTE Temperature and Humidity Sensor are built to be programmed with high and low temperature alarm zones. EL MOTE Data Logger also records humidity in a large range of indoor and outdoor applications.
If a temperature or humidity zone is breached, EL MOTE Data Logger’s alarm will be activated. Alarm options include: email alerts (which can be sent to one or multiple email addresses), beeper sound alarms, and LED flash alerts.
Introduction to EL MOTE Temperature and Humidity Sensor
OUR PRODUCTS
- Description
- Application
- Features
- Specifications
The EL-MOTE-T is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-T is suitable for a wide variety of applications. These include:
- Building and Site Monitoring
- Housing & Business Premises
- Veterinary
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range On Mains Power | -20 to +60°C | -4 to +140°F |
|---|---|---|
| Measurement Range On Battery Power | -18 to +55°C | -0.4 to +131°F |
| Accuracy | ±0.5°C | ±1°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 |
- Description
- Application
- Features
- Specifications

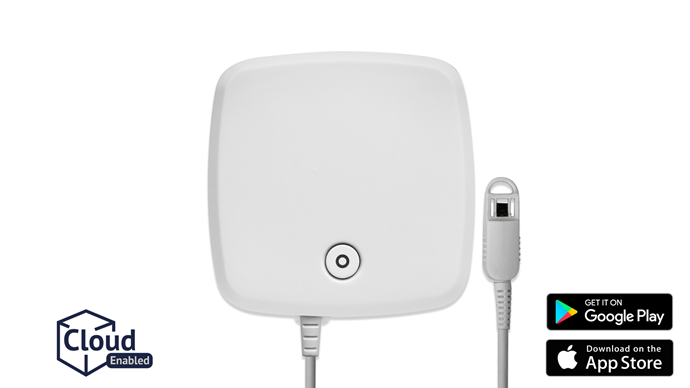

The EL-MOTE-TH is a Cloud-enabled, wireless data logger, designed to monitor temperature and humidity in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
This device is suitable for a wide variety of applications, including:
- Building and Site Monitoring
- Housing & Business Premises
- Veterinary
- Museum and Heritage Monitoring
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
- Pre-calibrated probes available for zero downtime calibration
| Measurement Range On Mains Power | -30 to +80°C | -22 to +176°F |
|---|---|---|
| Typical Temperature Accuracy | ±0.3°C | ±0.6°F |
| Humidity Measurement Range | 0 to 100% RH | |
| Humidity Accuracy | ±2% (20 to 80% RH) | ±5% (0 to 100% RH) |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 |
- Description
- Application
- Features
- Specifications

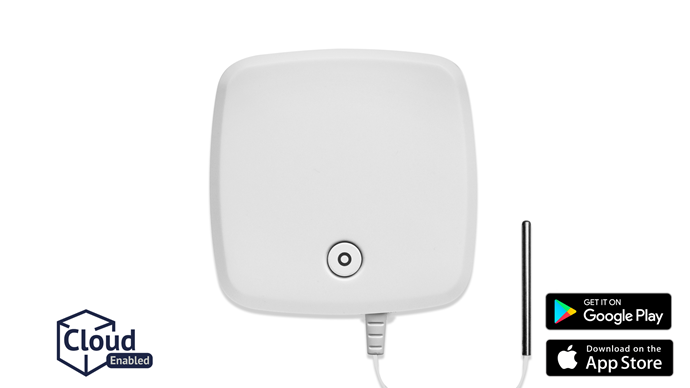

The EL-MOTE-TP is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-TP is suitable for a wide variety of applications. These include:
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range | -40 to +125°C | -40 to +257°F |
|---|---|---|
| Typical Accuracy | ±0.8°C | ±1.5°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 | |
| Probe Cable Length | 3m (118.1″) |
- Description
- Application
- Features
- Specifications
The EL-MOTE-TC is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-TC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include:
- Food and Drink
- Building and Site Monitoring
- Oven Monitoring
- Dry Ice Shipments
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range K Type (provided) | 0 to 200°C | 32 to 392°F |
|---|---|---|
| Measurement Range K Type | -200 to 1,300°C | -328 to 2,372°F |
| Measurement Range J Type | -200 to 1,190°C | -328 to 2,174°F |
| Measurement Range T Type | -200 to 390°C | -328 to 734°F |
| Typical Accuracy | ±1°C | ±2°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| Probe Cable Length | 1.5m | 59.1″ |
- Description
- Application
- Features
- Specifications
The EL-MOTE-T+ is a Cloud-enabled, high accuracy, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-T+ is suitable for a wide variety of applications. These include:
- Building and Site Monitoring
- Housing & Business Premises
- Veterinary
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range | -20 to +60°C | -4 to +140°F |
|---|---|---|
| Typical Accuracy | ±0.15°C | ±0.3°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 |
- Description
- Application
- Features
- Specifications
- Data Sheet
The EL-MOTE-TH+ is a Cloud-enabled, high accuracy, wireless data logger, designed to monitor temperature and humidity in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
This device is suitable for a wide variety of applications, including:
- Building and Site Monitoring
- Housing & Business Premises
- Veterinary
- Museum and Heritage Monitoring
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range | -30 to +80°C | -22 to +176°F |
|---|---|---|
| Typical Temperature Accuracy | ±0.2°C | ±0.4°F |
| Humidity Measurement Range | 0 to 100% RH | |
| Humidity Accuracy | ±1.8% (20 to 80% RH) | ±4% (0 to 100% RH) |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 |
- Description
- Application
- Features
- Specifications
The EL-MOTE-TP+ is a Cloud-enabled, high accuracy, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-TP+ is suitable for a wide variety of applications. These include:
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range | -40 to +125°C | -40 to +257°F |
|---|---|---|
| Typical Accuracy | ±0.2°C | ±0.4°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 | |
| Probe Cable Length | 3m (118.1″) |
- Description
- Application
- Features
- Specifications
The EL-MOTE-DTP is a Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-DTP is suitable for a wide variety of applications. These include:
- Environmental and weather monitoring
- Agricultural and livestock
- Food & drink
- Building & site monitoring
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range | -40 to +125°C | -40 to +257°F |
|---|---|---|
| Typical Accuracy | ±0.8°C | ±1.5°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| IP Rating | 67 | |
| Probe Cable Length | 3m (118.1″) |
- Description
- Application
- Features
- Specifications
The EL-MOTE-DTC is a dual channel, Cloud-enabled, wireless data logger, designed to monitor temperature in a large range of indoor and outdoor applications. EasyLog Cloud harnesses the power of Iot to automate data logging and alert notifications – perfect for both compact systems with just a few sensor requirements to corporate solutions with thousands of devices around the globe.
The EL-MOTE-DTC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include:
- Food and Drink
- Building and Site Monitoring
- Oven Monitoring
- Dry Ice Shipments
- Alarm functions include a built in sounder and LED
- Quick, wireless App based configuration
- Stores data internally if device loses WiFi connection and automatically uploads it to the Cloud once reconnected
- Suitable for indoor and outdoor applications
- Industry leading 2 years battery life
| Measurement Range K Type (provided) | 0 to 200°C | 32 to 392°F |
|---|---|---|
| Measurement Range K Type | -200 to 1,300°C | -328 to 2,372°F |
| Measurement Range J Type | -200 to 1,190°C | -328 to 2,174°F |
| Measurement Range T Type | -200 to 390°C | -328 to 734°F |
| Typical Accuracy | ±1°C | ±2°F |
| Battery Life | Up to 2 years | 4 x 1.5V AA cells |
| Dimensions | 93 x 93 x 32mm | 3.7 x 3.7 x 1.3″ |
| Probe Cable Length | 1.5m | 59.1″ |
